Used helicopter sales

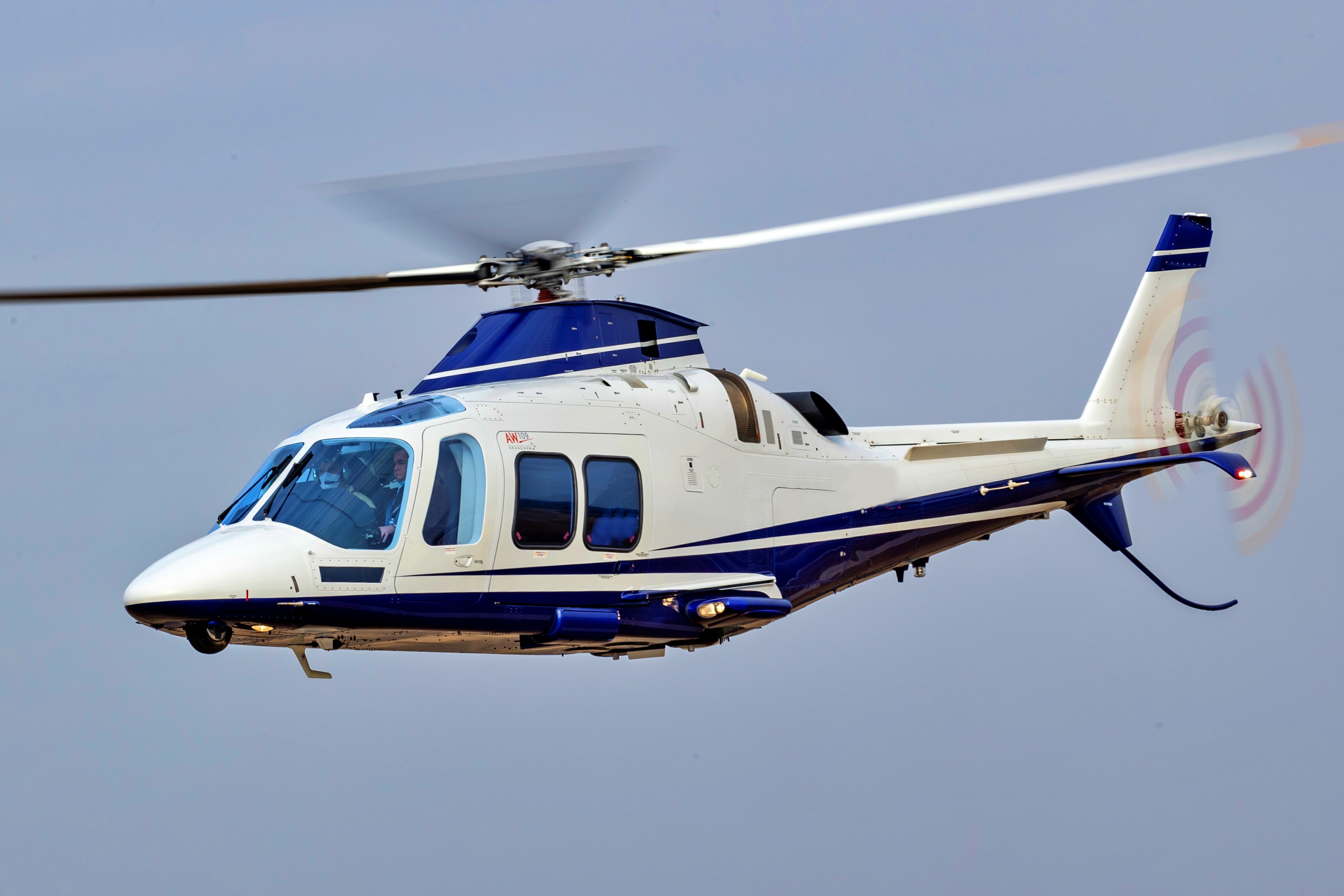

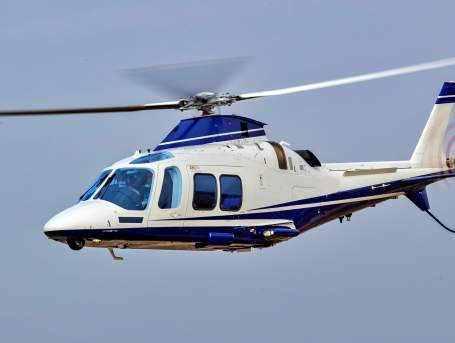

2022 AW109SP GrandNew

Sloane is thrilled to exclusively advertise this VIP 2022 AW109SP.

Presented in immaculate condition, this aircraft comes with a full warranty, valid until March 2027 and a low flying time of just 76 hours.

Maintained to the highest standard by Sloane Helicopters from new, an authorised Leonardo Service Centre.

Price: On application

Year of Construction: 2022

Total Time Since New: 76

Engine: Pratt & Whitney PW207C turbo shaft engines

Annual Inspection Due: February 2024

Avionics:

Single Pilot, Dual Control IFR Avionic Package:

  • Dual pilot flight/navigation EFIS (PFD and MFD) with embedded FMS, Synthetic Vision (SVS), HTAWS (Helicopter Terrain Awareness and Warning System), slip indicator and Remote Bug Panel (RBP)
  • Co-pilot flight/navigation EFIS (2 displays) with embedded FMS, Synthetic Vision (SVS), HTAWS (Helicopter Terrain Awareness and Warning System), slip indicator and remote Bug Panel (RBP)
  • Reversionary Control Panel (RCP)
  • EFIS pilot/co-pilot navigation synchronization switch (FMS data)
  • Electronic Standby Instrument system (ESIS)
  • Second Radio Management System (RMS) RTU-4210 Collins
  • Second VHF/AM VHF-40000E Collins
  • VOR/ILS/ADF NAV-4000 Collins
  • DME DME-4000 Collins
  • Radio Altimeter ALT-4000 Collins
  • Second Attitude Heading Reference System (AHRS)
  • Second Air Data Unit (ADU)
  • Pilot GPS/SBAS Chelton interfaced to EFIS/FMS
  • Co-pilot GPS/SBAS Chelton interfaced to EFIS/FMS
  • Digital Audio Control System (DACS) COBHAM additional cockpit panel
  • 4-axis dual duplex digital AFCS with integrated Flight Director
  • Second electronic clock
  • Second magnetic compass indicator
  • ELT C406-N HM Artex (with Navigation Interface Module embedded)
  • Dual controls

Additional Avionic Equipment:

  • 8.4 inch central display
  • Euronav
  • Stormscope
  • Traffic Advisory System TAS-620 Avydine (presented on EFIS)
  • Weather radar RDR 2000 Bendix/King (presented on EFIS)
  • ADS-B Out Capable Transponder TDR-94 Collins (in lieu of standard transponder)

Additional Equipment:

  • USB charger in the cabin
  • 213 USgal crash-resistant fuel system (in lieu of 152 USG)
  • 24 VDC 33Ah nickel-cadmium battery (20 cells in lieu of 19 cells)
  • 2.3m baggage compartment extension
  • High-intensity strobe lights on horizontal stabilizer
  • Mast Vibration Absorber
  • Protective cover for cockpit access

Interior:

VIP Deluxe Interior - Five Seats

  • All seats crash-resistant covered with leather or fabric/leather
  • Two fwd facing (aft bench) with Elite central cabinet
  • Three aft facing seats (central bench) with see through modification and foldable armrest Six to five place conversion kit
  • Single central drawer (under aft bench)
  • Super silent soundproofing
  • Liners leather/leatherette covered
  • Cabin double layer acrylic windows
  • Decoration trim with metal inserts
  • Intercommunication system for passengers
  • Headset Bose ANR type (qty five)
  • Cabin loudspeakers (qty two)
  • Reading lights, emergency lights, floor courtesy lights
  • Passenger hooks (qty four)
  • Upper and lower air vents
  • Floor carpeting with carpeting protection
  • Seat covers
  • Leather headset straps in cabin

Exterior:

White with blue metallic stripes
