Used helicopter sales

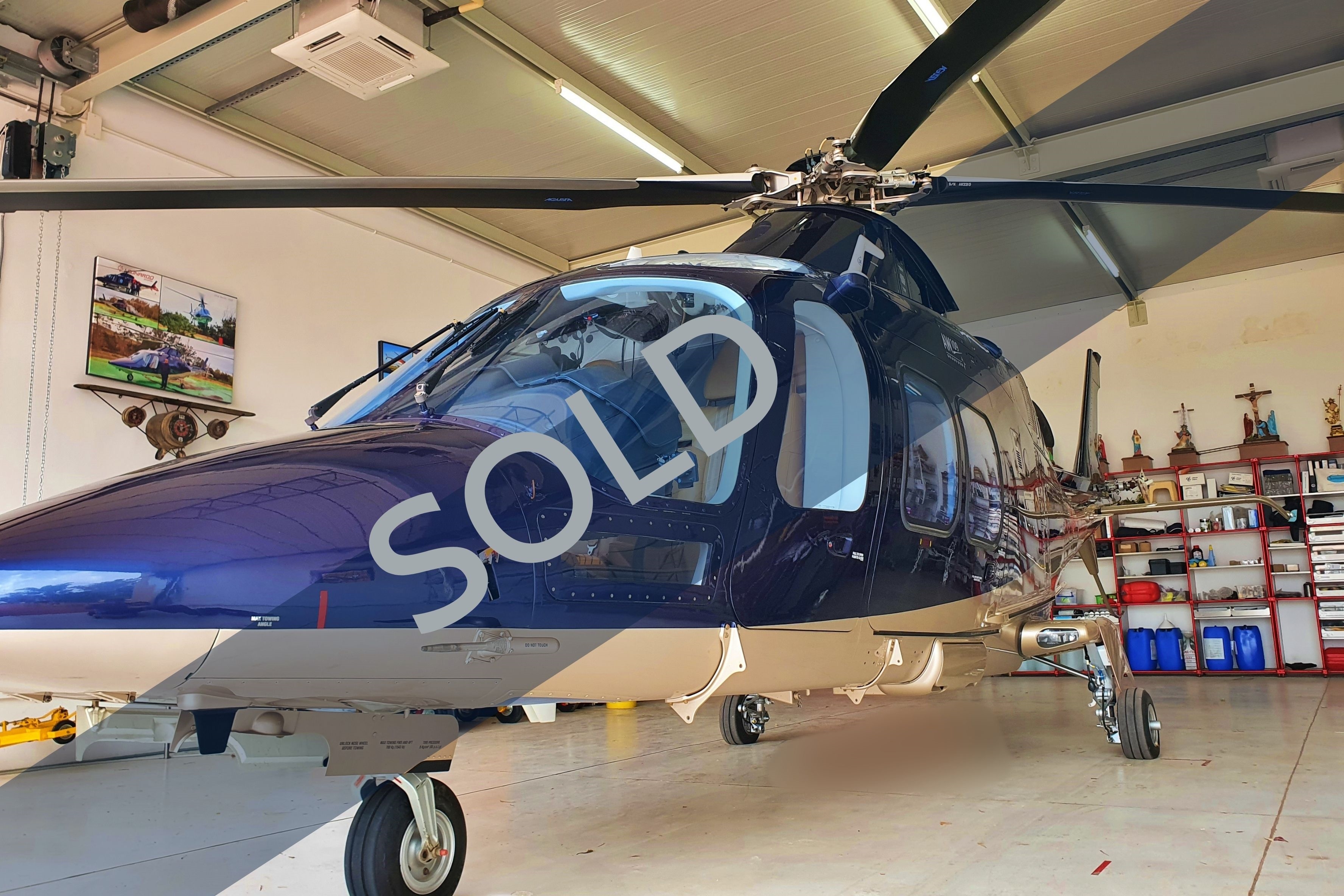

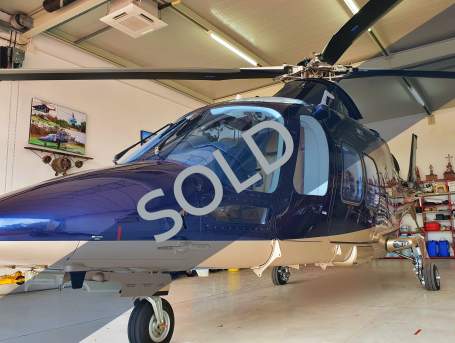

2018 AW109SP GrandNew - Sold

New to the market, this VIP 2018 AW109SP is presented in immaculate condition and is available with a low total time of only 328 flying hours.

Aircraft comprises a VIP interior with a six-seat interior and a TAS 620 Traffic Advisory System.

Additional equipment includes a five cell crash-resistant fuel system, 2.3m baggage compartment extension and electrically operated passenger steps.

Price: Sold

Year of Construction: 2018

Total Time Since New: 328

Engine: Pratt & Whitney PW207C turbo shaft engines

Avionics:

  • Dual flight/navigation EFIS (2 qty) with embedded FMS, Synthetic Vision System (SVS), HTAWS (Helicopter Terrain Awareness and Warning System), slip indicator and Remote Bug Panel (RBP)
  • Electronic Standby Instrument System (ESIS)
  • Traffic Advisory System TAS-620 Avidyne (presented on EFIS)
  • Weather radar (presented on EFIS)
  • Reversionary Control Panel (RCP)
  • EFIS pilot/co-pilot navigation synchronization switch (FMS data)
  • VOR/ILS/ADF NAV-4000 Collins
  • DME-4000 Collins
  • Radio altimeter ALT-4000 Collins
  • Pilot & co-pilot GPS/SBAS Chelton interfaced to EFIS/FMS
  • Four axis dual duplex digital AFCS with integrated flight director
  • Artex C406-NHM ELT (with navigation interface module embedded)
  • Second Radio Management System (RMS) RTI-4210 Collins
  • Second VHF/AM VHF-4000E
  • Digital Audio Control System (DACS) NAT additional cockpit panel
  • Second electronic clock
  • Second magnetic compass indicator
  • Second Attitude Heading Reference System (AHRS)
  • Second Air Data Unit (ADU)

Additional Equipment:

  • Crew open door actuators
  • Reinforced windshields
  • Windshield wipers (pilot/co-pilot)
  • Retractable/rotating landing light (nose mounted)
  • Engine compartment fire extinguisher
  • Engine washing kit provisions
  • Rotor brake
  • Baggage compartment lights
  • Tail boom strake
  • Fuel cap with key lock
  • Pulsed chip detectors (in lieu of quick disconnecting chip detectors)
  • Strobe lights on horizontal stabilizers
  • Dual controls
  • Airframe hourmeter
  • Blade tie downs
  • Engine air intake covers
  • Exhaust covers

OPTIONAL EQUIPMENT

  • Electrically operated passenger step (LH & RH)
  • Emergency floats (disassembled from aircraft)
  • Five cell crash-resistant fuel system
  • Baggage compartment extension (2.3m)

Interior:

VIP INTERIOR – SIX SEATS

  • All seats crash-resistant covered with tan leather
  • Three fwd facing seats (aft bench) with foldable armrest and glass holder
  • Three aft facing seats (central bench) with foldable armrest and glass holder
  • Shoulder harness with inertia reels and safety belts
  • Active Noise Reduction (ANR) headsets (pilot and co-pilot)
  • Soundproofing in passenger cabin
  • Air conditioning ECS (Environmental Control System)
  • Dome light cockpit
  • Map lights for pilot/co-pilot
  • Pilot multipurpose holder
  • Pilot/co-pilot console tray

Exterior:

Customised paint scheme
